This focuses on home lab and small brewery lab techniques.

Equipment

General (links to other pages)

Bunsen Burner

Density Meter

Density Meter's are a much more accurate tool for testing things like ethanol content as well as other things that can be useful in a brewery setting.

Anton Paar Density Meter

Dissolved Oxygen Meter

Dissolved oxygen meters play a large role in brewery QC of the final packaged products as well as oxygenation of wort pre-fermentation. Although cheaper DO meters can be used to find the PPM(parts per million) of oxygen in the wort pre-fermentation, more expensive advanced equipment is needed post fermentation as you'll need equipment that is capable of reading much lower levels of DO on a ppb level. When monitoring DO its crucial to be under 100 ppb packaged DO and for hop driven beers its ideal to be under 50 ppb or else you risk oxidation and other off flavors associated with oxygen.

During DO packaging testing, Justin Amaral found that breweries have issues with DO coming directly from their canning/bottling system. The most common factor found in high DO readings was in proper purging of lines when starting up the machines or taking a break as well as mechanical failure.

Orbital Shaker

An orbital shaker is a laboratory device used for mixing substances or maintaining movement of fluids. Maintaining movement of liquids has been shown to help some microorganisms grow. For example, running a shaker at 80 RPM for Brettanomyces starters is an effective way to grow this genra (see Brettanomyces starters) [1]. For a home orbital shaker example, see Example of a Home Lab Orbital Shaker.

PCR/qPCR

https://www.minipcr.com/product/minipcr-dna-discovery-system/

https://www.facebook.com/groups/MilkTheFunk/permalink/1888017211226484/ - Under Joe I's comment

https://www.weberscientific.com/beer-spoilage-micro-test-kit-microbiologique (see this MTF thread).

https://www.facebook.com/groups/MilkTheFunk/permalink/2069735766387960/

S. cerevisiae var. diastaticus

Titratable Acidity Meter

TA meters can be a very useful tool in sour beer brewing. Although its generally been used in the wine world to measure the acidity of wines, it can be used on beer as well. Although pH can give you rough look how acidic something is, it doesn't really give you a accurate outlook on how acidic something is on the palate. Please refer to http://www.milkthefunk.com/wiki/Titratable_Acidity for more info.

Hanna TA meter

UV/VIS Spectrophotometer

A Spectrophotometer can be used for an array of tests. They are commonly used to analyze SRM, IBU, ethanol content and other wort compositions. They can also be used for cell counts as well as other microbiology facets.

UV Plate Cooling Cabinet

Using a UV sterilization cabinet can not only help cool/sterilize freshly poured plates but it can be used to UV sterilize other things as well. The build itself is quite simple. You will have to do some basic wiring.

Ideally you'll want a Laminar flow hood with a UV light in the hood, but this will do for just cooling plates or doing quick UV sterilization.


Parts List -

Light Ballast https://www.amazon.com/gp/product/B00AB32J7S/ref=oh_aui_detailpage_o04_s01?ie=UTF8&psc=1 Lamp Mount https://www.amazon.com/gp/product/B0036ZA966/ref=oh_aui_detailpage_o04_s01?ie=UTF8&psc=1 4 pin connector https://www.amazon.com/gp/product/B003B92NP2/ref=oh_aui_detailpage_o04_s01?ie=UTF8&psc=1 UV Light https://www.amazon.com/gp/product/B001HB3E2W/ref=oh_aui_detailpage_o06_s00?ie=UTF8&psc=1 Plexiglass https://www.amazon.com/gp/product/B019D0DUDQ/ref=oh_aui_detailpage_o03_s00?ie=UTF8&psc=1

Growth Media

Lactobacillus/Pediococcus

See Rogosa SL Agar

MRS Media

Chemical Usage Amount
Dextrose 20 grams
Peptone 10 grams
Beef Extract 8 grams
Yeast Extract 4 grams
Sodium Acetate 5 grams
Dipotassium Hydrogen Phosphate 2 grams
Ammonium Citrate 2 grams
Manganous Sulfate Tetrahydrate 0.05 grams
Magnesium Sulfate Heptahydrate 0.2 grams
Distilled/De-ionized Water Fill to 1000 ML

NBB Media

NBB media can also be used to help detect/isolate spoilage bacteria. This is a pre-made media by Doehler. More info can be found at NBB Media. Although ASBC suggests this media its most likely favored by them as their recommendations are generally products sold by Siebel. After a quick discussion with Richard Preiss cheaper media can be used to reach the same goals. Using HLP, WLN w/ cycloheximide and tween 80, and MRS w/ cycloheximide and tween 80 you can achieve the same results as using the array of NBB media available.

ABD Media

Advanced beer-spoiler detection medium (ABD), which is basically MRS with some of the MRS substituted for beer, has reportedly been shown to be a better growth medium for beer-spoiler LAB which have adapted to the brewing environment and are difficult to grow on other media. This media also has the advantage of inhibiting the growth of other microorganisms that are not beer spoilers. In order to grow some very slow growing strains, microcolony methods using carboxyfluorescein diacetate (CFDA) and species-specific fluorescence in situ hybridization (FISH) allows detection of slow-growing strains of LAB within 3 days, although the CFDA and FISH approaches require special equipment that might not be available for some QC laboratories [2][3].

Chemical Usage Amount
MRS broth (powder) 2.61 grams
Sodium acetate 0.5 grams
Clycloheximide 10 milligrams
Agar 15 grams
Beer (presumably lager beer with low IBU) 1000 milliliters
Final pH 5.0

Saccharomyces

A wide variety of media can be used for Saccharomyces. Bromocresol Green can also be added to these media, as in the commercial WLN formulation. Most Saccharomyces cannot metabolize this dye, causing the colonies to stain green. Chloramphenicol can also be added to eliminate bacterial growth. Although not all of these media are specifically for your average brewers Saccharomyces, most strains should have no issues growing.

YPD Media

Chemical Usage Amount
Yeast Extract 10 grams
Peptone 20 grams
Dextrose 20 grams
Agar(optional) 15 grams
Distilled Water Fill to 1000 ML

MYPG Media

Chemical Usage Amount
Malt Extract 3 grams
Yeast Extract 3 grams
Peptone 3 grams
Dextrose 10 grams
Agar 15 grams
Distilled Water Fill to 1000 ML

Sabouraud Media

Chemical Usage Amount
Cycloheximide (Optional) 10 mg
Chloramphenicol (Optional) 0.5 grams
Peptone 5 grams
Dextrose 20 grams
Agar 15 grams
Distilled Water Fill to 1000 ML

Freezing Media

Chemical Usage Amount
Glycerin 50 grams
Ascorbic Acid 15 grams
Liquid YPD/MYPG Fill to 100 ML

Beef Broth Media

Chemical Usage Amount
Beef Broth(No preservatives) 500 mL
NaCI (can substitute non-iodized or sea salt) 50-200 grams
Peptone 5 grams
Dextrose 10 grams
Agar(optional) 17 grams
Distilled Water Fill to 1000 ML

Wild Yeast Screening Media

Chemical Usage Amount
Peptone 5 grams
Yeast Extract 3 grams
Malt Extract 3 grams
Dextrose 5 grams
CuSO4 310 mg
Distilled Water Fill to 1000 ML


LCYM Media

Chemical Usage Amount
Ammonium chloride 0.5 grams
Dipotassium ortho phosphate 1.1 grams
Cupric sulphate (anhydrous) 0.55 grams
Dextrose 10 grams
DME 2 grams
Peptone 2 grams
Yeast Extract 4 grams
Agar 17 grams
Distilled/De-ionized Water Fill to 1000 mL

Brettanomyces

A few different media can be used to isolate Brettanomyces but DBDM medium is commonly used. WLD with additions of cycloheximide can also be used. A simple Malt agar with cycloheximide has been shown to grow Brettanomyces that has been adapted to the brewing environment more efficiently than Dekkera medium (recommended by the European Brewing Convention, but not listed here) and universal beer medium (recommended by the Brewery Convention of Japan; also not listed here) [4].

DBDM Media Recipe

Chemical Usage Amount
Yeast nitrogen base (YNB) 6.5 grams
Ethanol 4% v/v
Cycloheximide 10 mg
p-coumaric acid 100 mg
Bromocresol Green 22 mg
Agar 20 grams
Distilled Water Fill to 1000 mL

WLD Media Recipe

Chemical Usage Amount
Cycloheximide 4 grams
Yeast Extract 4 grams
Pancreatic Digest of Casein(Peptone) 5 grams
Dextrose 50 grams
Monopotassium Phosphate .55 grams
Potassium Chloride 425 mg
Calcium Chloride 125 mg
Magnesium Sulfate 125 mg
Ferric Chloride 2.5 mg
Manganese Sulfate 2.5 mg
Bromocresol Green 22 mg
Agar 20 grams
Distilled Water Fill to 1000 mL

Malt Agar Media Recipe

Click here for directions on how to make this medium. The below recipe is using the Suzuki (2008) recipe instead of the recipe in the linked directions.

Malt extract 30 grams
Cycloheximide 0.01 grams
Agar 15 grams
Distilled Water Fill to 1000 mL

Misc/Other

Reference on DBDM: https://www.facebook.com/groups/MilkTheFunk/permalink/1805210829507123/?comment_id=1805397166155156&comment_tracking=%7B%22tn%22%3A%22R%22%7D

Storage

Isotonic Sodium Chloride

Isotonic Sodium Chloride is a saline solution which can be used for storage of microbes. Depending on the species, survivability times can range. It should be kept cold just above freezing. Most Saccharomyces strains handle this storage well and can be stored for 2 years like this before needing to re-propagate and re-banking. After one year Lactobacillus and Pediococcus seem to survive moderately well depending on the strain. Brettanomyces however seems to have a harder time maintaining good vitality. Please refer to Justin Amaral's post for information about this.

The solution for Isotonic Sodium Chloride is quite simple. You'll need 9 grams of lab grade Sodium Chloride to 1000 mL of distilled/de-ionized water, autoclaved.

Propagators

Justin Amaral's 4.5 BBL Propagator

The propagator below has a 14 gallon capacity, allowing a prop up of 4.5 BBL. This same set up can be used on any fermenter but is best used on ones that can hold 5 PSI and up. The seal on the below fermenter can hold around 5 PSI but clamps are also used on the lid to ensure it can hold up to 10 PSI. It essentially acts as a large stir plate while allowing to trickle in either O2, NO2 or CO2 depending on what your propagating. Ideally you'd also use a non magnetic drive pump but its not essential.

Below is the draw up of the build out for this prop up tank. As you can see it uses quick disconnects but you can use tri-clover connects as well. It also uses a diffusion stone that connects into one of the ferrules allowing you to trickle in gases. The picture shows a diffusion stone directly into the fermenter but its since been adapted as shown in the other pictures below to allow the diffusion stone to be behind a valve so its only exposed when needed. It also uses a whirlpool connector that goes into the fermenter creating the whirlpool when the pump is on:

Techniques

(Videos provided by Bryan of Sui Generis blog and Zach Taggart of 42 North Brewing Company.)

Aseptic Technique

Making Agar Plates

  • Making WLD plates:

Yeast/Bacteria Isolation

Making Your Own Media

Although media can be bought pre-made, you can also make these media yourself. Media can be either sterilized via an autoclave/pressure cooker or using sterile filtering. Keep in mind it can be difficult however to sterile filter some items such as yeast extract, peptone and brewer's grade DME. Because of this some just autoclave parts of the media while sterile filtering the rest into the sterilized media.

It is crucial you use aseptic technique with your media once it is sterilized to prevent any contamination. If you are storing extra media for later use make sure to remake it every month or 2 if unused.

Yeast Banking

Cell Counting

Gram Staining

Propagating Yeast

Various other tips:

  • When propagating yeast in an Erlenmeyer flask, use a flask that allows for plenty of headspace. This allows for a thinner layer of foam and thus more oxygen diffusion. Set the stir plate or shaker to the highest speed that doesn't produce a lot of foam. A good general rule of thumb is to use a flask that allows for 20-33% starter volume and 66-80% headspace (ideally 20% starter volume and 80% headspace). For example, for a 1L starter, use a 3L, 4L, or 5L flask (ideally 5L). More volume can be used with a Fernbach or a baffled flask, but these require a shaker table. When propagating yeast for use in beer, use wort and a magnesium and zinc nutrient for best yeast propagation practices. Cover the flask with foil (or foam stoppers if fruit flies are a problem) [6].

Semi-Anaerobic Containers for Incubating Plates

Anerobic chambers can be costly. Here is are two DIY methods. The first achieves under 1% O2, and both methods will also prevent mold growth.

  1. The plating setup: Use 60mm plates; bigger plates might not fit.
  2. The anaerobic tools: short wide-mouth jam jar, rubber-lined lid.
  3. After inoculating, loosely tape the lids in place, just so they don't fall off when placing them in the jar.
  4. Purge the jar with CO2 for 5-10 seconds with lid just ajar.
  5. Place 1 or 2 Oxy-Sorb 100-Pack Oxygen Absorber, 100cc into the jar.
  6. Seal the jar with electrical tape.
  7. Incubate!

Afterwards, seal the package of Oxy-Sorb with a vacuum sealer. Otherwise they will begin to absorb oxygen [7].

An alternative method using a vacuum sealer and a jar lid adapter:

  1. The plating setup. Use 60mm plates; bigger plates might not fit.
  2. The anaerobic tools: short wide-mouth jam jar, lid, vacuum sealer, ball jar attachment.
  3. After inoculating, loosely tape the lids in place, just so they don't fall off when placing them in the jar.
  4. Purge the container with CO2 for 5-10 seconds with lid just ajar.
  5. Place ball jar adapter on jar and vacuum seal container.
  6. Incubate!

These methods were shared by Bryan of Sui Generis Blog and Zach Taggart of 42 North Brewing Co. See this MTF thread for details.

Shipping Cultures

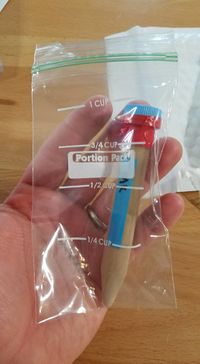

Example of DeWayne Schaaf's packaging for shipping cultures.

DeWayne Schaaf recommends the following procedures for shipping cultures with the USA states and territories [8]:

  1. Use 15ml centrifuge tubes from Cynmar LLC - Wine & Brew. They are great quality and have a very low rate of leakage, especially when combined with electrical tape.
  1. Place each liquid filled tube into its own snack sized baggie to minimize cross-contamination if they do happen to leak.
  1. Each of these smaller bags will be placed in a quart Ziplock.
  1. My main shipping container is Uline Poly bubble mailers. I don't tend to use ice packs as I've found them unnecessary when shipping in favorable temps (use ice packs during the summer).
  1. USPS is my preferred shipping method. Using first class shipping, my packages typically take no more than 3 days to reach somewhere in the USA and cost right around $3, and that includes a tracking number. Shipping rates are roughly the same for any USA state or territory. The 48 continental states, Alaska, Hawaii, Puerto Rico, and Guam all cost roughly the same.

For 5 gallon pitches or cultures that may still be a bit active creating cO2 Soda Preform tubes work very well. These are the same type of tubes White Labs uses for their homebrew pitches. https://www.amazon.com/Soda-Bottle-Preforms-Caps-30/dp/B008MB1QNY/ref=sr_1_1?ie=UTF8&qid=1504524577&sr=8-1&keywords=soda+test+tubes
